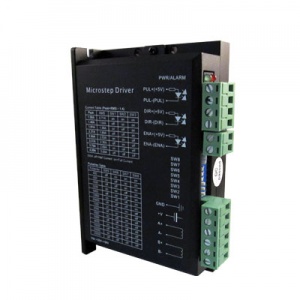

MondoStep 4.2


Bi-polar Stepper Motor Chopper Driver

  • High performance, cost-effective
  • Supply voltage up to +50VDC
  • Output current up to 4.2A
  • Pure-sinusoidal current control technology
  • Pulse input frequency up to 300 KHz
  • TTL compatible and optically isolated input
  • Automatic idle-current reduction
  • 15 selectable resolutions, up to 25600 steps/rev
  • Step/Direction and CW/CCW modes
  • Short-circuit, over-voltage, over-current and over temperature protection

User Manual

http://www.probotix.com/manuals/MondoStep4.2.pdf

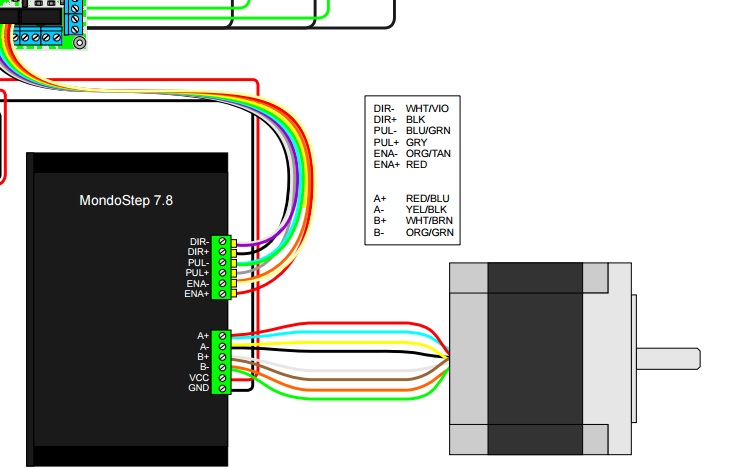

Wiring to Motor


Motor Wiring to XLR
