Bi-polar Stepper Motor Chopper Driver

  • Perfect for standard Nema 23 motors
  • High performance, cost-effective
  • Supply voltage up to +50VDC
  • Output current up to 5.6A
  • Pure-sinusoidal current control technology
  • Pulse input frequency up to 300 KHz
  • TTL compatible and optically isolated input
  • Automatic idle-current reduction
  • 15 selectable resolutions, up to 25600 steps/rev
  • Step/Direction and CW/CCW modes
  • Short-circuit, over-voltage, over-current and over temperature protection

CONNECTIONS ARE SCREW TERMINALS BY DEFAULT

  • If connecting the input to a breakout board with 10pin IDC headers we recommend adding the 10pin IDC Adapter Cable Kit
  • If you purchase an IDC kit we will pre-solder upon request.


**Note some links are for the 4.2 driver but they are identical in documentation all settings are printed on the driver face and connecting diagrams are the same**

WIRING DIAGRAMS


USER MANUAL

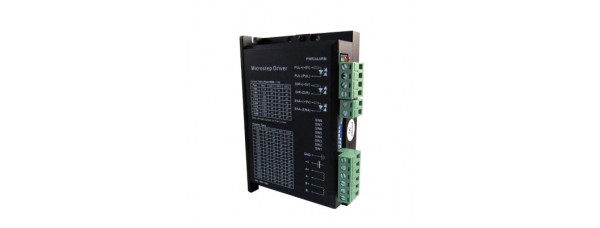

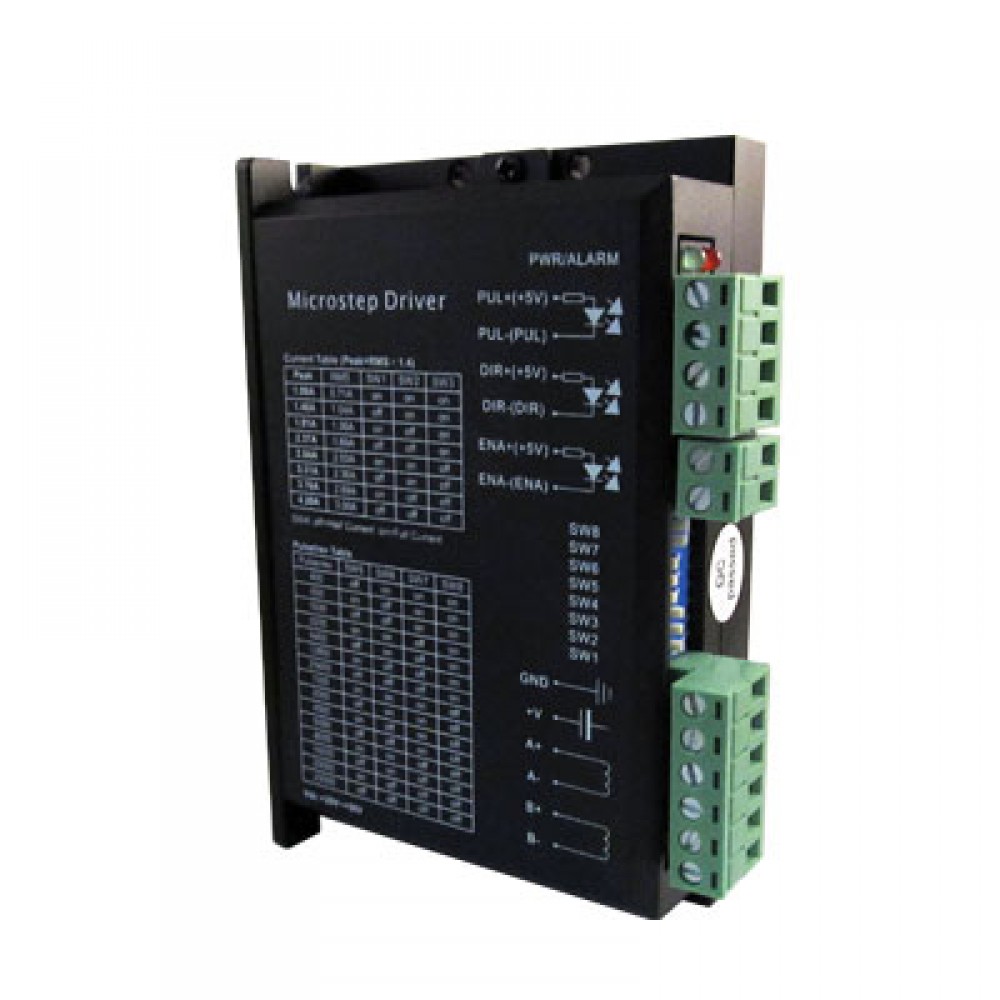

MondoStep 5.6 Bi-Polar Stepper Motor Driver

  • Product Code: MondoStep5.6
  • Availability: In Stock
  • $89.95


Tags: mondostep, 4.2, bi-polar, stepper, motor, driver, drivers 5.6
