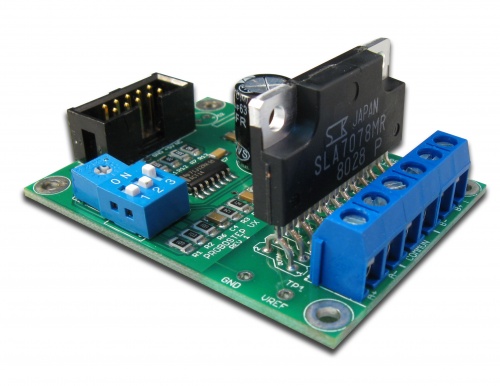

ProboStepVX

Model: ProboStep

Stepper Motor Microstepping Driver Specs:

  • Chopper Current Driver
  • 0.5 - 3 Amp Current Limiting
  • Short-circuit & Open-circuit Protection
  • Full, Half, Quarter, Eighth & Sixteenth Microstepping
  • Buffered Step & Direction Lines
  • 10V - 44V Supply
  • For 5-, 6-, and 8-wire Stepper Motors

Description:

The ProboStep is a complete microstepping motor driver and control system with a built-in translator. It is designed to operate uni-polar stepper motors in full-, half-, quarter-, eighth-, and sixteenth-step modes with output drive capability of 44V and 3.0 A. This driver utilizes the Sanken SLA7078MPR chip which includes built-in sense current detection and load circuit short or open protection provide lower loss and lower thermal resistance.
Figure 1: PBX-Header

Features:

  • Hardware or software selectable step and direction signals
  • Current limit adjustable by potentiometer
  • Wide range of motor power (10-42V)
  • Power (for logic) indicator LED
  • 3 A, 44 V Output Rating
  • Fixed-offtime PWM blanking circuit reduces ringing
  • 3.0-5.5 V Logic Supply Voltage Range
  • Synchronous Rectification for Low Power Dissipation
  • Internal UVLO and Short & Open Circuit Protection
  • Crossover Current Protection

Flexible Design:

The ProboStep was designed with flexibility in mind with features including:

  • Internal synchronous-rectification control circuitry is provided to improve power 4dissipation during PWM operation.
  • Internal circuit protection includes short-circuit and open-circuit protection. Special power-up sequencing is not required.
  • The logic signals are brought out to a .1" pin header on one side (see Figure 1), allowing for use of an IDC cable to connect your boards. Every other pin on the IDC header is connected to ground, which acts to shield the control signals from noise. Noise in a stepper control system can cause miss stepping, which can damage your equipment, cause injury, and ruin your work piece.
  • A schmitt trigger IC buffers the high voltage driver from your sensitive parallel port, and filters noise.
  • Unlike the SideStep, the driver chip, the ProboStep does not have thermal protection, so a heatsink must be used when driving motors at greater than 1 amps.
  • An under-voltage lockout circuit protects the SLA7078 from potential shoot-through currents when the motor supply voltage is applied before the logic supply voltage. All outputs are disabled until the logic supply voltage is above 2.7V; the control logic is then able to correctly control the state of the outputs.
  • Patented short and open circuit protection.

Unipolar Chopper Drivers:

Unipolar chopper drivers are the simplest form of stepper motor control. A set of four sink drivers control the current to each of the four half-phases of a stepper motor. The circuit includes recirculating diodes and a sense resistor that maintains a feedback voltage proportional to the motor current. The high side of the supply is split out to one side of each half-coil, and the other end of each half-coil is routed to the low-side transistor switches. Motor windings, using a chopper driver, are energized to the full supply level by turning on one set the switching transistors. The sense resistor monitors the linear rise in current until the required level is reached. At this point the switch opens and the current decays until a preset position is reached and the process starts over. This "chopping" effect of the supply is what maintains the correct current voltage to the motor at all times.

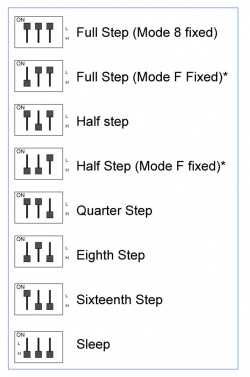

Figure 2: ProboStep Dip Switch Settings

Microstepping

Most modern stepper motors have 200 physical steps per revolution meaning they move 360°/200 = 1.8 degrees per step. Chopper drivers are able to further divide down those physical steps by balancing the current of the two phases, in effect "holding" them at different angles between phases. The SideStep can microstep down to 1/8 of a full step, effectively turning the motor into a 200 x 8 = 1600 steps per revolution motors, increasing step accuracy to .225°. Microstepping can also increase rotational smoothness, but the speed of the step pulses has to be multiplied as well. Half-stepping works well for most applications.

Mode 8 uses 70% current ratio between phases, Mode F uses 100% current ratio between phases. Mode F should provide slightly more torque while Mode 8 should give smoother motion.

Diagram

ProboStep Diagram

Figure 3: ProboStep VREF Settings

Setting Current Limit

Measure the DC voltage between the Ref Pin and GND, and adjust the trimmer as follows:

VREF = 0.15 x Desired Motor Current
3A 0.44V
2.5A 0.36V
2.0A 0.29V
1.5A 0.22V
1.0A 0.15 V
0.50A 0.07 V

WARNING: Do not exceed 0.44 V or driver damage may occur!

  1. Determine the step resolution you wish to use, and set the dip switches according to Figure 2.
  2. If driving your motors at more than 1 Amp, install a heat sink on the driver chip and cooling fan. Contact us if you need heat sinks. The chips thermal tab is not enough of a heat sink for current over 1 amp.
  3. Apply power.
  4. Connect a voltmeter between the VREF signal and GND and adjust the current trimmer to the desired voltage determined above.

WARNING: Short-term current overdrive will, in general, not harm most motors. But if the motor is connected during this adjustment, excessive heating may occur. Most motors can NOT experience temperatures above 100°C. At these temperatures internal melting and seizure may occur. If you cannot do this quickly, then set the current BEFORE you hook up the motors.

WARNING: Never remove a connection to the stepper motor with power applied. There is a HIGH probability the SLA7078 IC will be damaged. The SLA7078 is rated for 46V DC max. The power supply voltage should be limited to ~40V DC to allow for back EMF generated by the stepper.

Schematic

Probostep vx rev1 schematic.jpg


Resources

File:SLA7078-Datasheet.pdf
