Unity-M Controller

Unity Controller customized for use with bench-top mill conversions using a higher amp Z driver with NEMA34 motor options.

  • Expandable to your needs, versatile, and flexible.
  • Can be used for 2, 3, or 4 axis systems.
  • Get it with or without motors
  • Motors (if purchased) are pre-wired with 6 Feet of 5-Conductor 22 Gauge Motor Wire and XLR connectors

Have A Look Inside:

  • 40Volt (110VAC Input) Linear Power Supply for the fastest motor operation
  • Professionally wired, installed, mounted and tested electronics
  • 4 Drivers, Breakout Board, IDC cables, and wired connector ports
  • Full Enclosure with Power switch, fan, and fuses
  • Modular and organized

Driver System:

  • 3x 5.6Amp MondoStep Bipolar Drivers (X, Y, and A axis)
  • 1x 7.8Amp MondoStep BiPolar Driver (Z axis)

Breakout Board:

The PBX-MX is an isolated parallel port breakout board for use with software such as LinuxCNC or Mach3.

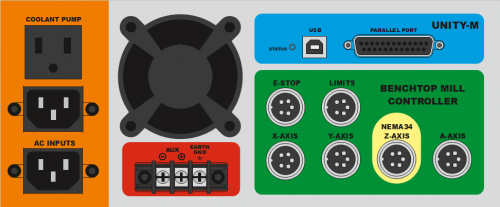

Integrated back panel includes:

  • Connections for up to 4 motors
  • Connector for limit switches
  • Connector for E-Stop
  • Earth ground connection for improved EMI protection
  • Auxilary 5v logic output that can drive an accessory like the Powerswitch Tail
  • IEC power connections for the primary power and the router control relay
  • PBX-MX Isolated Parallel Port breakout board
  • Two AC inputs
  • Color coded


Parallel Port 1) A Dir 10) X Limit
2) X Step 11) Y Limit
3) X Dir 12) NC
4) Y Step 13) Z Limit
5) Y Dir 14) 120VAC Relay
6) Z Step 15) E-stop
7) Z Dir 16) 5VDC AUX
8) NC 17) A Step
9) NC 18-25) GND
2-pin E-stop Connector 1) Pin 15
2) GND
8-pin Limit Switch Connector 1) X Limit (Pin 10)
2) GND
3) Y Limit (Pin 11)
4) GND
5) NC (Pin 12)
6) GND
7) Z Limit (Pin 13)
8) GND
5-pin Motor Connector 1) B-
2) B+
3) NC
4) A+
5) A-
