The Galaxy Series machines must ship by freight carrier. If you are in the continental USA, the shopping cart will calculate freight shipping automatically. For outside of the USA, shipping is FOB Origin (with a $120 crating fee) and the buyer is responsible for arranging pick-up with a freight courier. The freight is one palletized crate, class 92.5 from zip code 32548 USA. See the grid below for weights and dimensions. Email email@example.com or call us at 844.472.9262 between 7AM and 4PM Central Monday - Friday if you need further assistance.

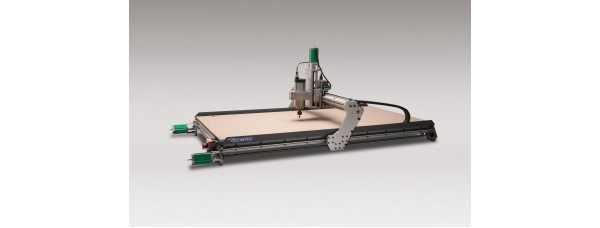

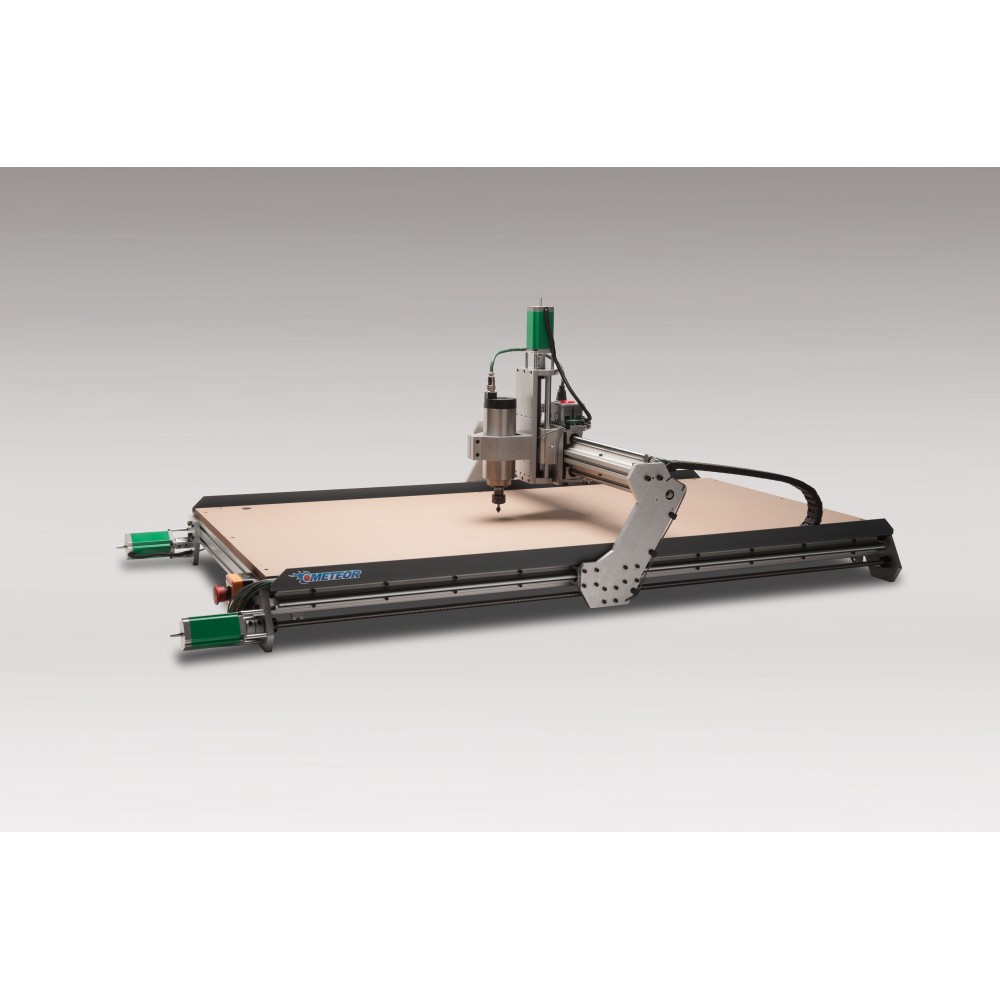

The GX2550 Meteor takes the best CNC router in it's class, and makes it even better – twice as long as our GX2525 Comet. Designed for users needing to use long stock but lacking the room for the expanded gantry of the GX2550. You can make full through-neck guitars with the additional work envelope provided.
The GX2550 is a high performance, general purpose CNC machine tool positioner, suitable for many uses such as guitar building, clock making, plaques, signs, RC aircraft parts and more! New GX series models include a high-rigidity HD gantry with taller uprights for increased clearance.
This machine comes fully assembled and is shipped in a crate handled by a freight carrier. With pre-installed home/limit switches, spindle control relay, cable chain, and carriage mounted spindle power jack, no other machine on the market comes close to being this complete, and ready-to-run.
All New HD Gantry!
With twice the size and 4x the density of the Galaxy series machines, the new GX series CNC routers are more rigid than ever!
25” x 50” x 5” Machine Travel
Make guitar bodies, signs, plaques, and more. The convenient size and work envelope of the GX2550 expands your possibilities.
Less flex. Supported round rails offer the same benefit as the hiwin type of rails, at a fraction of the cost.
Precision ACME Leadscrews
More affordable than ballscrews, yet capable of precise positioning and rapid travels.
Zero backlash. Delrin anti-backlash nuts apply pressure to both sides of the screw face eliminating backlash. The anti-backlash nuts by design will wear out, but are user replaceable.
400 Inches Per Minute Rapids
Less time flying through the air to get from one entry point to the next. Any faster than this and you'd have to set the acceleration so low that it'd never reach that speed anyhow due to the mass of the gantry and carriage.
Solid Aluminum & Steel Construction
More rigidity. Very minimal tool deflection. No comparison to any of the belt-driven, plastic wheel machines.
Open Frame/Tandem Motor Design
The tandem motor setup, coupled with some LinuxCNC sorcery makes squaring the machine a breeze. The independent but simultaneous left and right homing sequence will re-square itself every time the machine is homed. Tandem motors also prevent racking, which can be a problem when the tool is operating at the edges of the work envelope. Removing the leadscrew from the center of the table eliminates work piece height limitations.
T-Slot Extrusion Construction
The open frame design allows for taller work pieces and many fixturing options. The spoil board can be mounted above or below the frame. Also, the spoil board could be completely removed, and the user can fabricate any sort of mounting system, rotary table, etc. The use of T-Slot on the frame makes fabricating your custom fixtures and mounting them a breeze.
Pre-installed Limit/Home Switches
Because of the tandem motor setup, homing switches are essential, and thus are factory installed. No other machine in this class comes with pre-installed homing/limit switches. With homing and soft limits, your work offsets and fixture locations will be saved from session to session.
Cable Chain Cable Management
Clean and professional IGUS cable chains guide and protect the wiring. Another exclusive feature that you will not find on any other machine on the market.
Fully Assembled , Wired, & Calibrated
Even includes frame mounted emergency stop switch. Nope - the other guys don't have this either.
Unity2 Stepper Motor Controller
This machine was designed around our MondoStep Stepper Motor Driver kit with 4x 570ozin Motors & 40V power supply. The GX Series tandem motor setup requires a 4-axis controller. No other motor driver kit will run this machine as it was intended. The motor/driver kit comes as ready-to-run, with enclosure, fan, connectors, and all. All you have to do is connect the motor and switch jacks, attach it to the PC, and power it on.
Included PC w/ LinuxCNC Control Software
Because of the tandem motor setup and the custom configuration necessary for LinuxCNC to coordinate the homing sequence, we feel it is best for us to include a pre-configured PC. Also, it needs to be a high PC to spit out the step pulses fast enough to achieve our high speeds.
Relay Controlled Router or Speed Controlled Spindle
Relay router control is standard on this machine. There is a 110V power jack mounted to the carriage. This allows us to run the router power through the cable chain. The user can easily change out routers as needed, and will not have to cut off the plug on the power cord - which would void the warranty on your tool.
If you choose the 80mm spindle option, you can control the spindle speed in software.
Choice of Router & Spindle Mounts
The bolt pattern is the same as the V90, and any of our spindle mounts will work on this machine. An array of this bolt pattern on the z-axis face allows you to mount the spindle in several positions relative to the z-axis travel. This will help with different tool length requirements, and fixturing offsets.
|X Travel||25+ Inches|
|Y Travel||50+ Inches|
|Z Travel||5+ Inches|
|Maximum Speed||400 Inches Per Minute (combined), 280 Inches Per Minute (per axis)|
|Drive Mechanism||1/2" 5-Start ACME Screws w/ Anti-backlash Nuts, 570ozin Stepper Motors|
|Linear Rails||16mm Fully Supported Rails on X & Y Axis, 16mm Open Rail on Z Axis|
|Machine Frame||3060M Aluminum T-slot Extrusion|
|Control System||Unity2 CNC Controller (5x 5.6Amp Bi-polar Drivers), LinuxCNC Control PC|
|Power Requirements||10A@110VAC for Control System, 20A@220VAC for optional VFD Spindle|
GX2550 CNC ROUTER
- Brand: GX Series
- Product Code: GX2550-METEOR
- Availability: In Stock
